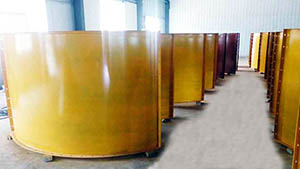

Cement Silo

     clicks:1192

Model:

100t

Volume:

75cbm

Thickness:

3~8mm

Materials:

Carbon steel

Height:

12000mm

Diameter:

3000mm

Weight:

5500kgs







Component :

Steel construction of silo, stair , safehanding, feedpipe, dusting, pressure valve, high & low meter, discharge valve, support legs .


Cement silo"

is generally used in the concrete mixing station of bulk cement storage, bulk cement silo is a closed storage of bulk material tank, suitable for storing grain, cement, fly ash and other various bulk materials, the tank body is provided with a material, can display the position of the material and how much, hole device can be lifted material deposited too for a long time and cause strong. The cement silo and the screw conveying pump can be matched with the use of the material which can be transported to each position, and the tank body is convenient to install, and the utility model is an ideal bulk storage tank of various mixing stations.



  • Model

    diameter

    Cone height

    Silo height

    Leg height

    Total height

    Match screw

    30T

    3m

    2.5m

    3.5m

    2m

    9m

    LSY165

    50T

    3m

    2.5m

    5m

    2m

    10.5m

    LSY165/LSY180

    60T

    3m

    2.5m

    6.5m

    2m

    12m

    LSY180

    80T

    3m

    2.5m

    8m

    2m

    13.5m

    LSY219

    100T

    3m

    2.5m

    9.6m

    2m

    15.1m

    LSY219/273

    150T

    3.2m

    2.8m

    12.8m

    2m

    18.6m

    LSY273
