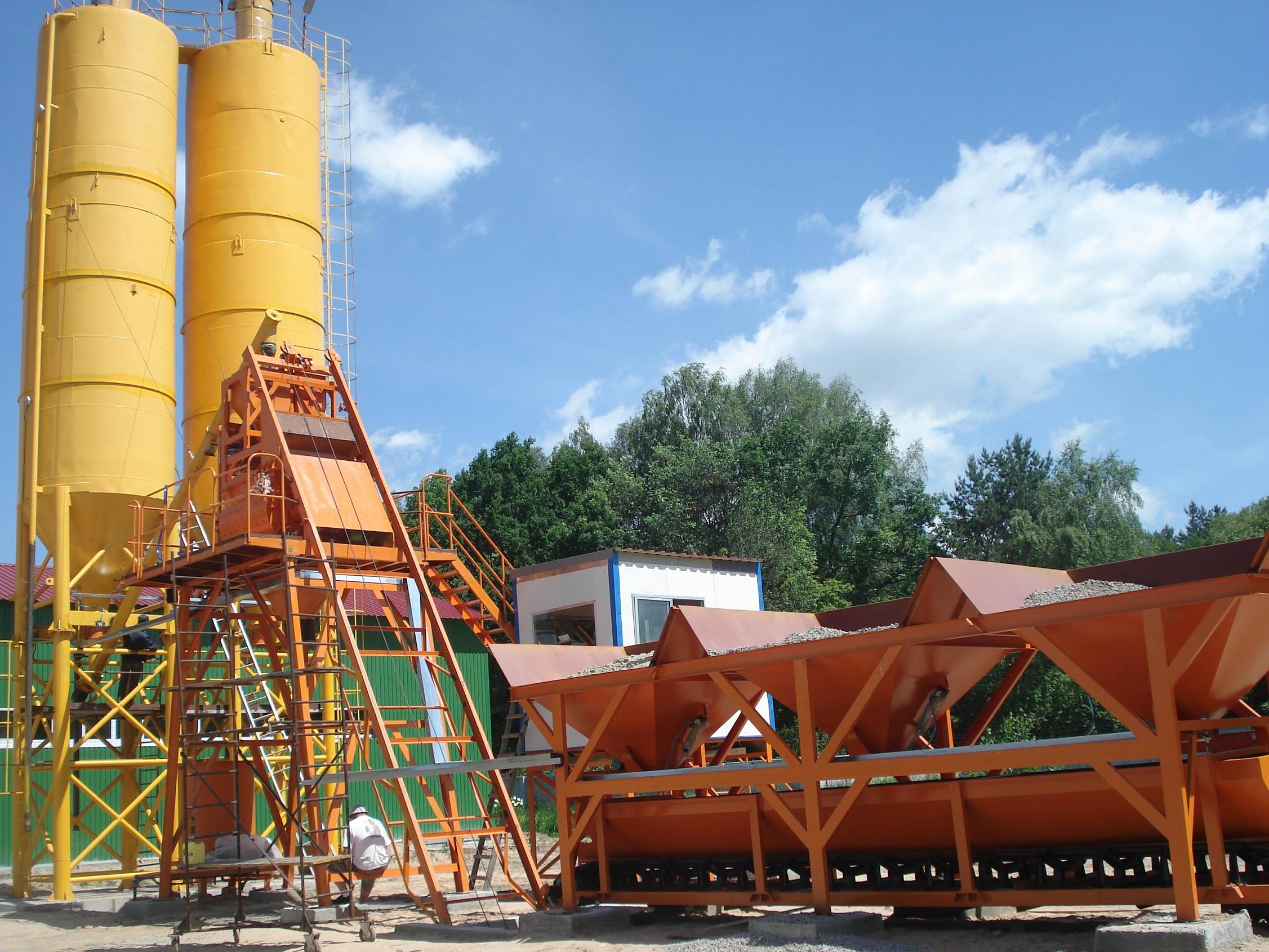

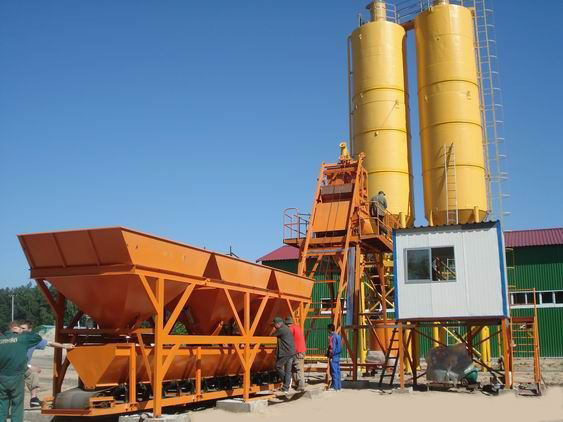

HZS25 Concrete Mixing plant

     clicks:4233

Capacity:

25m3/h

Mixing Time:

60S

Max Aggregate Size:

60/80mm

Discharging Height:

3800mm

Total Power:

60KW

Total Weight:

25Ton

Total Dimensions:

15×8×12m




  • HZS25 Concrete Mixing Plant



    Descriptions of Concrete Mixing Plant:

    Easy to operate HZS25 plants are the perfect solution for the small concrete producer or construction site. Available in 4 sizes ranging from 15–75 m3/hr, these compact plants are designed for easy set-up, low operating cost and optimal concrete quality.

    HZS25 is the economical way for the small producer to make professional grade concrete. HZS25 concrete mixing plants arrive on site pre-wired, pre-plumbed and factory tested. The plug and play feature is what makes HZS25 truly stand out. They are so easy to set-up that they can be up and running within three days of installation. HZS25 allows users to achieve super fast 70-second batch cycles for conventional concrete, including batching, charging a mixer, mixing and discharge. This delivers a maximum output of 45 concrete batches per hour with continuous production. The HZS25 concrete batch plant has a positive, accumulative aggregate weighing system providing ultra precise batching and all batch components (aggregate, admixtures, and cement) can be pre-weighed and ready while another batch is mixing.

    The HZS25 concrete mixing plant is well suited for a wide variety of production needs including precast, dry cast, ready concrete and architectural product production. It is also ideal for onsite concrete mixing since it is portable.




    Technical Parameters of HZS25 Concrete Mixing Plant:



    Capacity:

    25m3/h

    Mixing Time:

    60S

    Max Aggregate Size:

    60/80mm

    Discharging Height:

    3800mm

    Total Power:

    60KW

    Total Weight:

    25Ton

    Total Dimensions:

    15000×8000×12000mm



    1.       Mixer: Twin Shaft Concrete Mixer



    Model:

    JS500

    Mixer Capacity:

    500L

    Feeding Capacity:

    800L

    Fresh Concrete Capacity:

    625L

    Compacted Concrete Capacity:

    500L

    Mixing blade:

    2×7PC

    Mixing Speed:

    35r/min

    Mixer Motor-Gear Box Power:

    18.5kW

    Weight:

    3700kg

    Dimensions:

    3030×2300×2680mm

    Water distributor

    Pneumatic discharge door

    Manuel lubrication system



    This type twin shaft mixers is installed the skip system, they are easy to operate and long life mixers with very strong spiral shaped mixing arms, compact structure and provide fast mixing, practical loading.



    2. AGGREGATE SYSTEM

    2.1 Aggregate batcher:

    PLD800  ( 1unit )

    Volume:

    2×2m3

    Capacity:

    48m3/h

    Power:

    3×3kW

    Discharge valves:

    4unit

    Weight:

    2300kg

    Dimension:

    6400×1600×3000mm



    2.2 Weighting hopper:

    1unit

    Load cells:

    1500kg ( 3Units )

    Hopper Capacity:

    1.2m3

    Power of Motor:

    3kW



    Aggregate batcher is designed and manufactured as per related DIN norms to operate under heavy working conditions for long time. There exist 2 electro- pneumatically controlled discharge gates, which provide easiness and choice in the discharge together with suitable elevation.


    3. EMENT SYSTEM


    3.1 Cement silo:

    2units

    Capacity:

    50t×2=100t

    Silo Diameter:

    Φ2800

    Plate Thickness:

    4~7mm

    Silo Pressure Valve:

    1unit

    Level Indicators:

    1unit

    Silo Top Filter:

    24m2

    Ladder, manhole, platform, and parapets are included.

    The silos, with scale cells positioned above the batch mixer. These silos assure the admixture supply, measuring the amounts by weight, cubic capacity, or load.



    3.2 Cement Screw Conveyor:

    2units

    Diameter:

    Φ219mm

    Length:

    8m

    Capacity

    50ton/hour

    Motor Power:

    7.5kW



    4. ADDITIVE SYSTEM

    Additive silo Capacity:

    0.8m3

    Load cells:

    40kg1Unit

    Pneumatic Valve:

    Φ50mm

    Pump:

    3kw

    Precision:

    ±1%



    5. WATER WEIGNING SYSTEM

    Water Weighing Hopper:

    1unit

    Load cells:

    500kg3Units

    Weighting Capacity:

    150kg

    Motor Power:

    3kw

    Butterfly Valve:

    Φ150mm

    Precision:

    ±1%

    Piping installation on the plant



    6. CEMENT WEIGHING SYSTEM

    Cement Weighing Hopper:

    1unit

    Load cells:

    1000kg3Units

    Weighting Capacity:

    300kg

    Butterfly Valve:

    Φ150mm

    Precision:

    ±1%



    7. PNEUMATIC SYSTEM

    Air Compressor:

    1unit

    Power:

    5.5kW

    Pressure:

    0.7 Mpa

    Air flew:

    0.67m3/min

    Pipe and fittings materials



    8. CONTROL SYSTEM

    Control panel with PLC

    1unit

    Computer display:

    17inch

    Control Cabin:

    1unit

    Printer:

    1unit

    Software:

    1unit

    Manuel and Auto Control is freely changeable

    Our mixing plants are supplied by modern computerized controlling system. These systems are capable of making the necessary documentations.

    9. OPTIONAL ACCESSORIES

    • Auto Control System with Computer.
    • Three Bin Bolted Hoppers in place of Batching Bunker.
    • Additive System
    • Cement & Fly Ash Silo with Screw Conveyor/ Pneumatically Pipe Feeding System.
    • Air-condition Control Cabin
