HZS60 (60m3/hr) Mixing Plant
clicks:6875
|
Capacity: |
60m3/h |
|
Mixing Time: |
60 S |
|
Max Aggregate Size: |
60/80mm |
|
Discharging Height: |
3800mm |
|
Total Power: |
115KW |
|
Total Weight: |
60Ton |
|
Total Dimensions: |
25×11×19m |

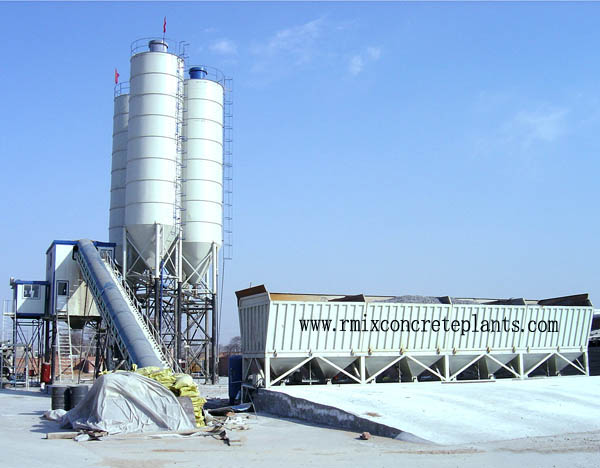

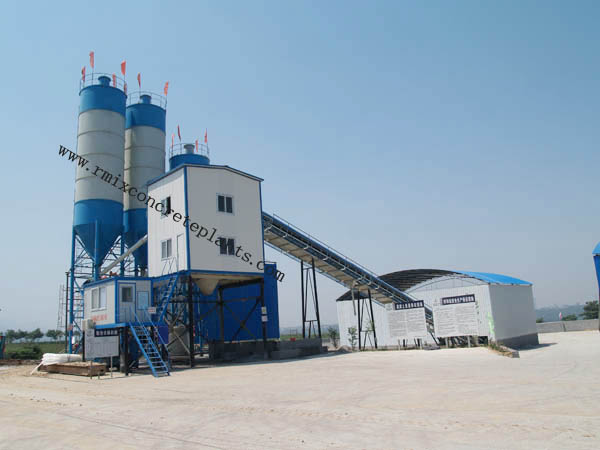

HZS60 Concrete Mixing Plant
Descriptions of Concrete Mixing Plant:
HZS60 plant is belt type central mix concrete batching plant with capacity ranging from 50–60 m3/hr. It is the perfect solution for the Medium ready concrete producer or construction site. This HZS modular batching plants are designed for locations where layout flexibility.
The HZS60 ready mix concrete plant is well suited for a wide variety of production needs including precast, ready concrete and architectural product production. It is also ideal for some small construction site, railway, bridge, road building.HZS60 is your smart choice and expand as your business grows.
Technical Parameters of HZS60 Ready Concrete Mixing Plant:
Capacity:
60m3/h
Mixing Time:
60 S
Max Aggregate Size:
60/80mm
Discharging Height:
3800mm
Total Power:
115KW
Total Weight:
60Ton
Total Dimensions:
25600×11000×19500mm
1. Mixer: Twin Shaft Concrete Mixer
Model:
JS1000Ⅱ
Mixer Capacity:
1000L
Feeding Capacity:
1600L
Fresh Concrete Capacity:
1125L
Compacted Concrete Capacity:
1000L
Mixing blade:
2×7PC
Mixing Speed:
25r/min
Mixer Motor-Gear Box Power:
37kW
Weight:
9890kg
Dimensions:
4650×2300×2680mm
Water distributor, Pneumatic discharge door, Auto lubrication system,
Safety discharge system
This type twin shaft mixers are installed the safety discharging system, they are easy to install and take a maintenance, it is a idea machine in a first time invite project.
2. AGGREGATE SYSTEM
2.1 Aggregate batcher:
PLD2400
Volume:
3×12m3
Capacity:
144m3/h
Power:
11kW
Discharge valves:
6unit
Weight:
76100kg
Dimension:
101200×3320×3820mm
2.2 Weighting hopper:
3units
Load cells:
2000kg (9Units)
Hopper Capacity:
1.6m3
Power of Motor:
3kW
Aggregate batcher is designed and manufactured as per related DIN norms to operate under heavy working conditions for long time. There exist 3 electro- pneumatically controlled discharge gates, which provide easiness and choice in the discharge together with suitable elevation.
2.3 Horizontal belt conveyor:
1Unit
Dimensions:
1000×24000mm
Conveyor Belt:
δ10mm
Motor：
11kW
Speed:
1.6m/s
2.4 Mixer feeding belt conveyor
Dimensions:
1Unit, 800×68200mm
Conveyor Belt:
1Unit
Motor：
28kW
Cover plates:
1Unit
Side check platform:
1Unit
Speed:
1.6m/s
Feeding belt conveyor is equip with the cover and repair platform ,it can be easy to workout the problem if some thing wrong with it and the emergence stop button can protect the belt conveyor if power off suddenly .
2.5 Aggregate Collecting Bunker
Capacity:
3m3
Pneumatic Valve:
Φ200mm
Vibrate Motor：
3kW
Aggregate Collecting Bunker provide a waiting time for the concrete mixer, it can make sure a enough continues aggregate for the mixer.
3. EMENT SYSTEM
3.1 Cement silo:
3units
Capacity:
100t×3=300t
Silo Diameter:
Φ3000
Plate Thickness:
4~7mm
Silo Pressure Valve:
1unit
Level Indicators:
1unit
Silo Top Filter:
24m2
Ladder, manhole, platform, and parapets are included.
3.2 Cement Screw Conveyor:
3units
Diameter:
Φ219mm
Length:
8m
Capacity
50 ton/hour
Motor Power:
7.5kW
4. ADDITIVE SYSTEM
Additive silo Capacity:
2m3
Load cells:
40kg（1Unit）
Pneumatic Valve:
Φ50mm
Pump:
3kw
Precision:
±1%
5. WATER WEIGNING SYSTEM
Water Weighing Hopper:
1unit
Load cells:
1000kg（3Units）
Weighting Capacity:
250kg
Motor Power:
3kw
Butterfly Valve:
Φ150mm
Precision:
±1%
Piping installation on the plant
6. CEMENT WEIGHING SYSTEM
Cement Weighing Hopper:
1m3
Load cells:
500kg（3Units）
Weighting Capacity:
600kg
Butterfly Valve:
Φ300mm
Precision:
±1%
7. PNEUMATIC SYSTEM
Air Compressor:
1unit
Power:
7.5kW
Pressure:
1.0MPA
Air flew:
1.2m3/min
Pipe and fittings materials
8. CONTROL SYSTEM
Control panel with PLC
1unit
Computer display:
17inch
Control Cabin:
1unit
Printer:
1unit
Software:
1unit
Manuel and Auto Control is freely changeable
9. OPTIONAL ACCESSORIES
- Auto Control System with Computer.
- Four Bins Bolted Hoppers in place of Batching Bunker.
- Additive System
- Cement & Fly Ash Silo with Screw Conveyor/ Pneumatically Pipe Feeding System.
- Air-condition Control Cabin
- Heating system
- Other special request
