JN Pan Concrete Mixer

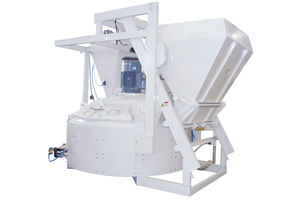

Planetary Concrete Mixer

Applications of Planetary Concrete Mixer:

Planetary Concrete Mixer widely applies to produce precast concrete, common commercial concrete and high performance concrete.

Features of Planetary Concrete Mixer:

1. Steady Driving.

The power transmission is realized by a hard surface gearbox

2. High Mixing Efficiency.

The gear box drives the mixing arms to move with complex track, and the mixing is turbulent, then the mixer works more effectively.

3. Homogeneous Mixing.

Mixing blades are composed of several groups of mixing arms, which covers the entire mixing region. Both revolution and rotation of mixing blades ensure the homogeneity of the material. As the picture shows, mixing blades’ motion track covers the whole drum after a cycle.

4. Multiple Discharging Method.

According to various demands of customers, the discharging door can be operated hydraulically, pneumatically or manually.

5. Special Designed Water Sprayer

Special designed sprayer makes the water cloud cover more area and ensure the even distribution of the materials.

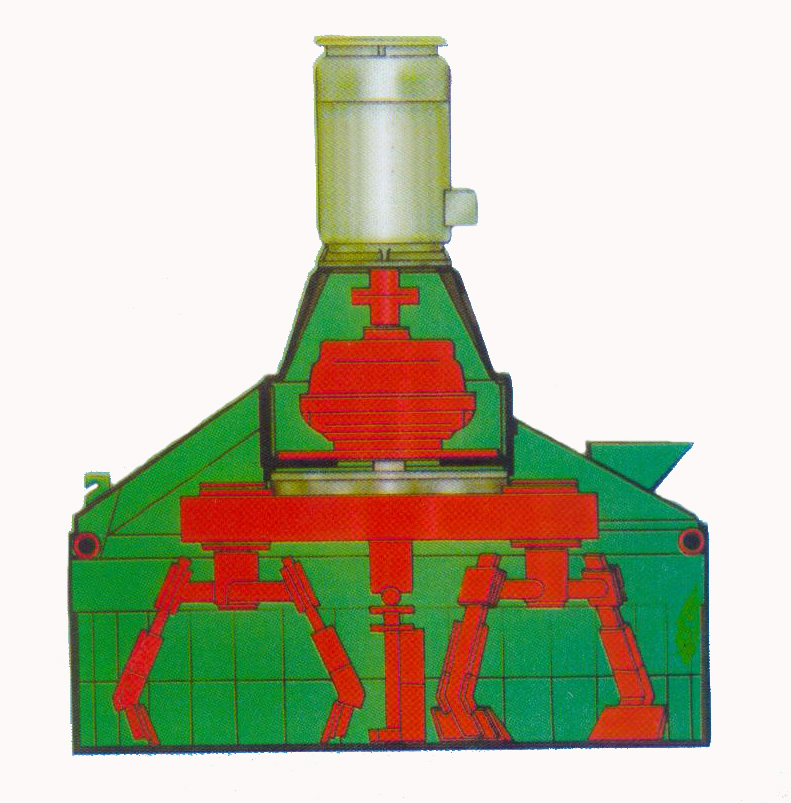

6. Easy to maintain and no leakage problem. Transmission system (including motor) is located at the top of mixing drum, completely separated from the concrete. It’s convenient for maintenance and there is no leakage problem at the shaft end.

• Main Technical Parameters of our Planetary Concrete Mixer:

  Model	Discharging Volume (L)	Charging Volume (L)	Diameter of Mixing Drum (mm)	Total Weight (Kg)	Mixing Power (KW)	Discharging Power (KW)
  JN250	250	375	600	1200	11	2.2
  JN330	330	500	800	1700	15	2.2
  JN500	500	750	1200	2000	18.5	2.2
  JN750	750	1125	1800	3500	30	2.2
  JN1000	1000	1500	2400	6000	37	3
  JN1500	1500	2250	3600	7000	55	3
  JN2000	2000	3000	4800	8500	75	4
  JN2500	2500	3750	6000	10500	90	4
  JN3000	3000	4500	7200	11000	110	4



  Optional Part:

  1.      Skip System

  2.      Supporting frame

  3.      Water weighing bin

  4.  Cement weighing bin

  Specifications subject to change without notice, Please check the details before the order.
