QT6-15 Hydraulic Block Machine

Since the moulds are changeable, the concrete equipment is able to produce different types of blocks/bricks, and this is a hydraulic machine can produces a stronger block, due to the greater pound pressure applied by the hydraulic system.

 The block manufacturer can also realize substantial savings by using less cement. A ratio from 8:1 to 11:1 sand/cement can be achieved. This machine is designed for the manufacturer with limited space, limited budget and the desire to achieve good quality, high volume of blocks, with the minimum cash outlay.

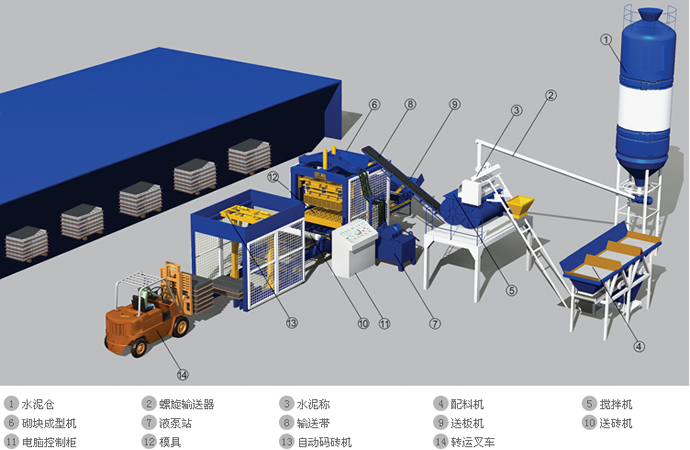

This machines can be equipped with an automatic elevator/skip for loading mix into hopper, agitator, an automatic pallet feeder, pallet ejector, brush for cleaning blocks and a run off conveyor (see above). It is suggested that you use a high capacity mixer of over 500 liters. A work force of 5 to 7 employees would keep this factory running at full capacity.

• QT6-15 Model Specification

  Hollow Block Capacity(390×190×190mm)	6/module
  Solid Brick Capacity(240×115×53mm)	36/module
  Holland Brick Capacity(240×115×90mm)	15/module
  Main Dimension(L×W×H)	6350×1680×2850(mm)
  Pallet Size(L×W×H)	970×830×30(mm)
  Pressure Rating	12~25Mpa
  Vibration	50~90KN
  Vibration Frequency	2900~5600r/min
  Cycle Time	15-20(s)
  Power(Total)	29kw
  Weight	8000kg
  Hollow Block Capacity(390×190×190mm)	8640-11520/8hours
  Solid Brick Capacity(240×115×53mm)	47520-66360/8hours
  Holland Brick Capacity(200×100×60mm)	21600-28800/8hours



  Optional Parts:

  1. Skip type concrete mixer……………………. Model JS500

  2. Mould:  we can manufacture the a certain special mould for you accordingly .

  3. Double layer Color-face device.


  Advantages Of QT Series Automatic Block Making Machine:



  1. Perfect humanization Electrical control system



  Siemens PLC with Visualization touch screen provide you a Child operation machine.



  2. Frequency Conversional Control Technology:



  It guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency, and Power saving: 30%;



  3. Hydraulic System. Make inChina, world Quality , and we can provide you the hydraulic motor as you request .



  4. Compulsory Feeding system make sure that the density and intensity of the products are guaranteed;



  5. Various product scope:

   It produces various color-face bricks (layered material feeding),through-body tiles，lock linkage blocks, road curb bricks, hydraulic blocks、hollow blocks, perforated bricks, and standard bricks etc.
