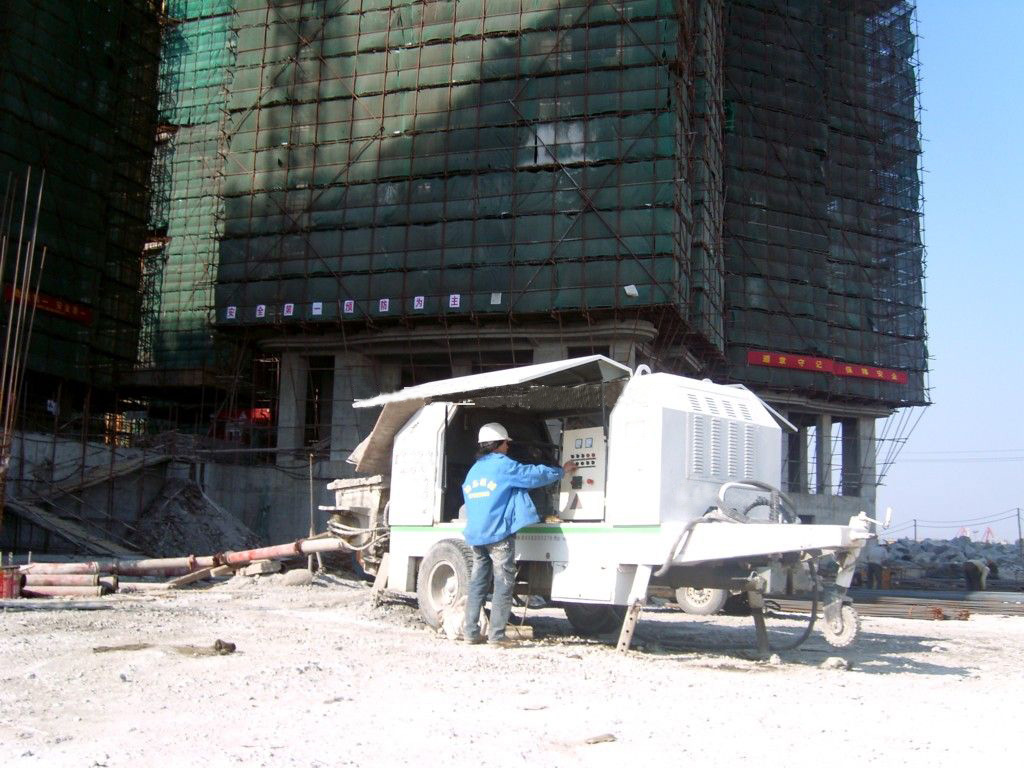

HBTS40-Concrete Pump ( 40m3/hr )

Parameter Name

Unit

HBTS40.08.75R

Overall performance

Max. Concrete Output

M³/h

48

Concrete Pumping Pressure

Mpa

8

The form of Distribution valve

S pipe valve

Concrete Cylinder

Spec.(bore*stroke)

mm

￠200*1400

Hopper Capacity

L

680

Diameter of Pump exit

mm

180

Hopper Height

mm

1450

Max. Delivery Distance (Vertical/ Horizontal)

80/500

Power
system

The Model of Diesel Engine

Weichai(Duetz)

Engine Power

kW

75

Rated Speed

r/min

2200

Hydraulic Circuit Form

Opened-circuit

Hydraulic System

Hydraulic oil tank capacity

L

500

Pump model

Rexroth 130

Overall Dimension(L*W*H))

mm

5200*2160*2010

Total Weight

Kg

4800
